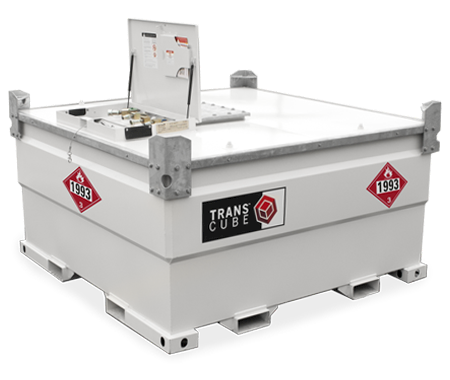

Western Global TransCube 40TCG Double-Walled Auxiliary Fuel Tank (1000 Gallons)

Western Global TransCube 40TCG is a 1000 gallons double-walled auxiliary fuel tank, with the dimensions of 91"L x 87"W x 48"H. It is ideal for use in stand-by power applications and refueling for smaller equipment.

Key Feature: Western Global, 40TCG

FEATURES

• Dimensions: 91"L x 87"W x 48"H
• Capacity: 1000 gallons
• Weights: 2724 lbs empty, 9370 lbsfull
• Lockable ENVIROconnect Cabinet
• Double walled, 110% containment
• Internal Baffles
• Four Way Forklift Pockets
• Removable Inner Tank
• CUBE logic Corner Brackets
• Access Manway
• Galvanized Frame
• Full load lifting eyes, forklift pockets and internal baffles designed to allow handling of the tank full of fuel
• Easily stackable (2)-high full of fuel and (3)-high empty to reduce storage space requirements
• Access manway for maintenance and inspection of inner tank. Removable inner tank for servicing and cleaning
• ENVIROconnect Equipment Cabinet locks and secures fuel equipment and fuel ports to run up to 3 pieces of diesel-powered equipment
• Double-walled, 110% containment eliminates the need for spill pans

DESCRIPTION

Western Global TransCube 40TCG is a 1000 Gallons Double-Walled Auxiliary Fuel Tank, with the dimensions of 91"L x 87"W x 48"H. It is ideal for use in stand-by power applications and refueling for smaller equipment. The TRANSCUBETM TCG above ground fuel tank series was introduced to eliminate many of the inefficiencies found in average fuel tanks and simplify the fuel handling, storage, and transportation process.

APPLICATION

• Designed to provide on-demand fuel supply (environmentally and efficiently) for construction equipment and temporary power applications
• TRANSCUBE TCG tanks are designed to comply with the highest environmental standards and to perform in the harshest conditions
• Perfect for; Stand-by Power, On Site Equipment Fueling, On Demand Fuel Supply, Limited-Access Worksites

WHAT'S INCLUDED

• (1) Western Global TransCube 40TCG Double-Walled Auxiliary Fuel Tank (1000 Gallons)
• High accuracy contents gauge;
• (1) 3”Fill Point
• (1) 2” fusible link fill port
• (1) 1” pump feed with flexible dip pipe, strainer & non-return valve
• (1) Engine feed and return port set; pressure/vacuum vent; breather vent

BENEFITS

• UL 142 Approval
• UN/DOT Approval
• CAN/ULC-S601-07
• Transport Canada Certified
• NFPA 30 A Approval

CALL FOR PRICING AND AVAILABILITY ON NEW AND USED TANKS 206-588-2272
